Ford F450 F550 Front Disc Rotor 10 Stud

RAYBESTOS BRAKES

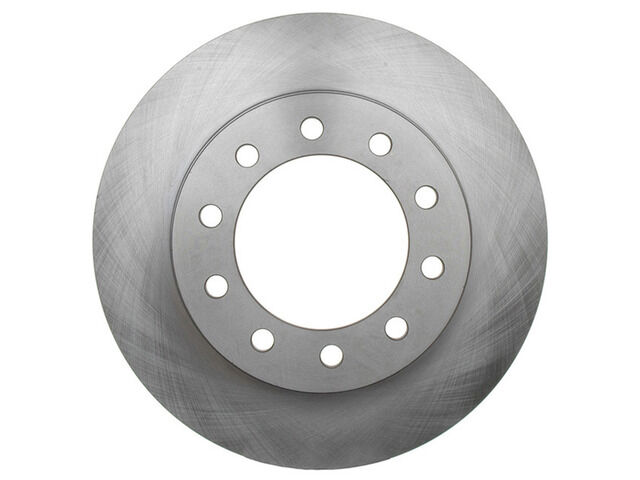

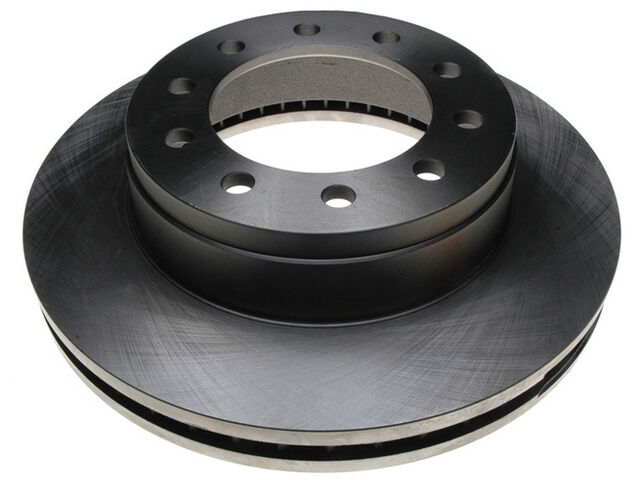

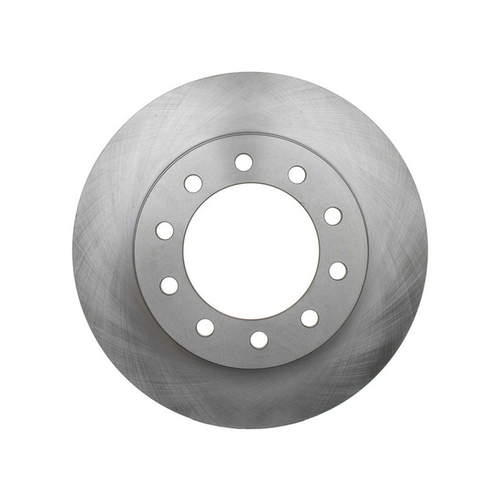

Ford F450 F550 Front Disc Brake Rotor

Suit 2005,2006,2007,2008,2009,2010,2011,2012,2013,2014,2015,2016

Part #680305R (Available)

Disc Brake Rotor

Raybestos R-Line Brake Rotor

Brand:	Raybestos Brakes R-Line
Position:	FRONT
Quantity Required:	2
Where to buy

Features

Raybestos^® R-Line Rotors & Drums are engineered for everyday driving conditions. Offering industry-leading coverage, our R-Line rotors & drums provide the highest level of dependability, safety, and performance.

Technical Details

Features and Benefits	OE Fit, Form, and Function
Brand Description	Raybestos R-Line Brake Rotor
Features and Benefits	Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
Features and Benefits	SAE Standard
Features and Benefits	R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
Features and Benefits	Low Initial Lateral Runout and Thickness Variation
Features and Benefits	R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
Features and Benefits	Mill Balanced Edges
Features and Benefits	R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
Outside Diameter (Inch)	14.53
Outside Diameter (Millimeter)	369.05
Stud/Lug Hole Quantity	10
ABS Tone Ring Included	No
Center Hole Diameter (Inch)	5.09
Center Hole Diameter (Millimeter)	129.3
Directional or Non-Directional Brake Surface	Non-Directional
Overall Height (Inch)	3.875
Overall Height (Millimeter)	98.4
Conventional Or Drum-In-Hat Type Rotor	Conventional
Discard Thickness (Inch)	1.472
Discard Thickness (Millimeter)	37.4
Harmonize Code	8708.30.5030
Material	Cast Iron
Mounting Bolt Hole Circle Diameter (Inch)	6.693
Mounting Bolt Hole Circle Diameter (Millimeter)	170
Mounting Bolt Hole Diameter (Inch)	0.636
Mounting Bolt Hole Diameter (Millimeter)	16.15
Mounting Bolt Hole Quantity	10
Nominal Thickness (Inch)	1.535
Nominal Thickness (Millimeter)	39
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
UNSPSC Code	25171715
Short Description	Disc Brk Rotor
Hazardous Material	No
Minimum Order Quantity	1
Country of Origin	China

Application Summary

2016-2015 Ford F-350 Super Duty Front, 2016-2005 Ford F-550 Super Duty Front, 2016-2005 Ford F-450 Super Duty Front, 2007-2006 International CF500 Front, 2007-2006 International CF600 Front

SKU	680305R
Brand	Raybestos
Shipping Weight	16.0000kg
Shipping Width	0.390m
Shipping Height	0.120m
Shipping Length	0.390m
Shipping Cubic	0.018252000m3
